C&I Energy Manager

Name: C&I Energy Manager
Brand: IGEN Tech Co., Ltd.
Availability: InStock

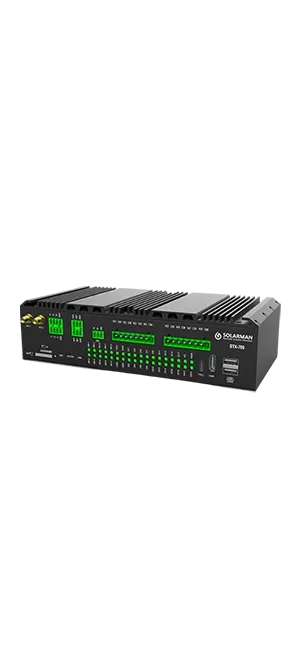

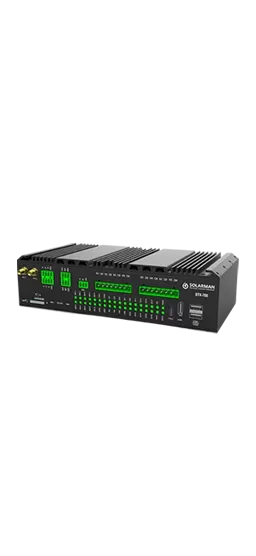

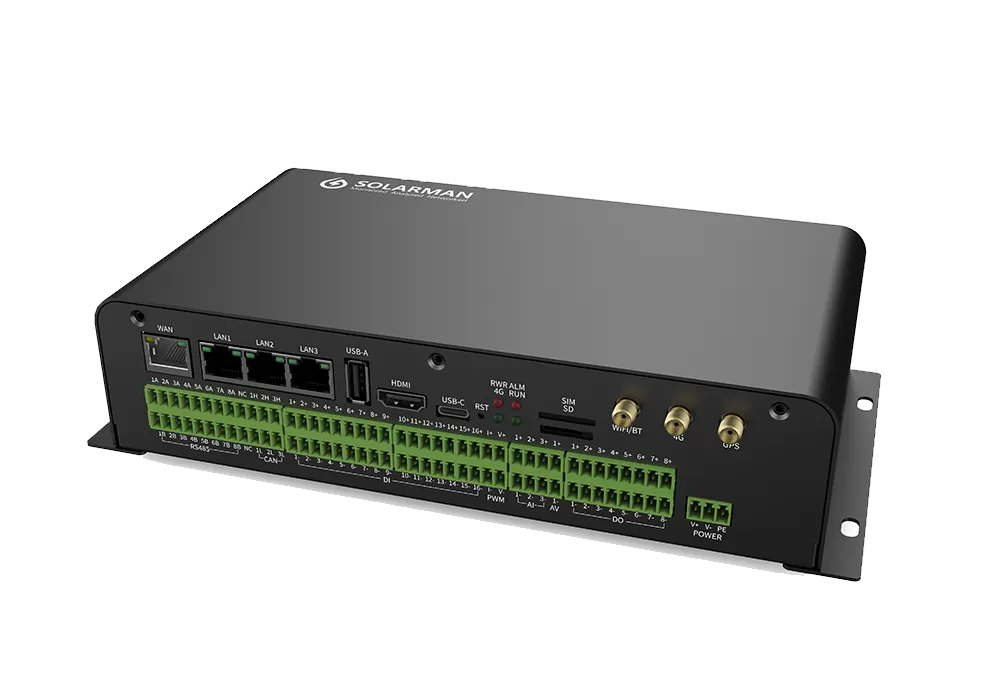

Gateway-type EMS can interface with the local EMS/EMU of energy storage systems or directly connect with various equipment units in energy storage systems. STX-700 is a new-generation smart gateway for industrial loT in energy storage field. This product adopts a high-performance embedded CPU and large-capacity eMMC storage. With its excellent system configuration, it provides high-speed data processing and efficient application performance.

C&I Energy Manager Feature

Supported Protocols

101,104, 61850, MQTT, Modbus, ModbusTCP, OPCUA, Bacnet/IP, etc.

Multi-device Data Integration

Enable data communication, conversion, and collection for 250+ mainstream PLC devices and RS485/232 interface devices.

C&I Energy Manager Parameters

EMS-1P

Communication Parameters

CPU	CPU	High-performance 4-core 64-bit processor, max frequency 2.0GHz
	DDR3	Onboard LPDDR4, 2GB (optional 4G/8G)
	EMMC	Onboard eMMC, 16GB (optional32G/256G)
Communication	4G/5G	Support standard 3G/4G/5G communication modules
	WIFI BT	IEEE802.11b/g/n/a/ac 2T2R
	WIFI BT	Compatible with Bluetooth 2.1/3.0/5.0

EMS-1P

Related Hardware Products
