Stick Logger

Stick Logger

4G/GPRS/WiFi/Ethernet
  • SOLARMAN stick logger supports GPRS, WiFi, 4G, Ethernet and other communication method. Furthermore, stick logger supports RS485/RS232/TTL/USB and other serial communication. With the design of multi-cover, it adapts to a vast majority of inverters. By collecting operating status and power generation of inverter, stick logger can run a long-term and efficient monitoring of PV system, which increases work efficiency and reduces management cost significantly. With its extended functions, such as GNSS, power-off reminder, Bluetooth, stick logger enables a qucik configuration at site and an easy plant O&M.

Stick Logger Feature

External indicator lights, ensuring collection status at a glance;
Plug and play, no extra power supply is required;
Independent module, protecting internal parts of inverter;
Waterproof design, resistant to bad weather;
External design, easy to replace faulty equipment;
Review data and yields via SOLARMAN Smart at anytime and anywhere;
Extended function: Power-off reminder;
Extended function: GNSS.
Product ModelLS4G-6-GLSW-MiniLSW-6LSW-3LSG-3LSE-3
Remote Communication Interface4G+2G+WiFi 6WiFi 6WiFi 62.4G WiFiGPRSLAN
GNSS————————————
Antenna4G External AntennaEmbedded Antenna——External AntennaExternal Antenna——
Data InterfaceRS485/RS232/TTL
Working VoltageDC 5-12V
Working Power≤4W2W2W1.5W3W1W

Stick Logger Data Sheet

SOLARMAN DATA LOGGER/Stick Logger LS4G-5

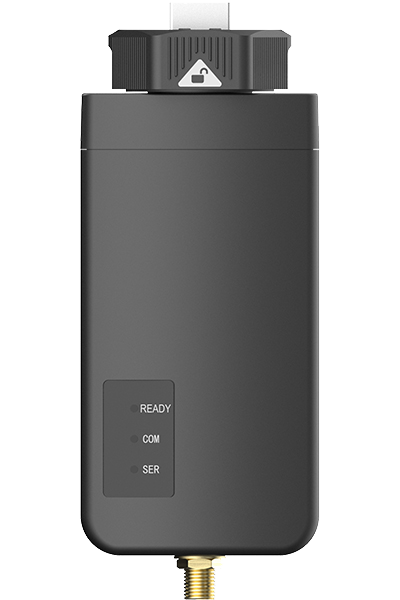

LS4G-6-G
4G+2G+WiFi 6
SOLARMAN/DATA LOGGER/Stick Logger LS4G-4-C(Aviation head)

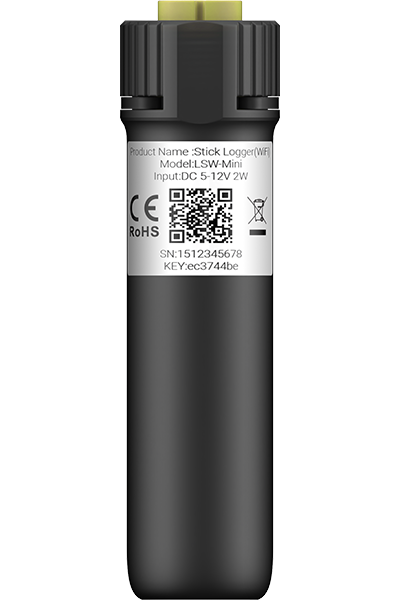

LSW-Mini
WiFi 6
SOLARMAN data logger/Stick Logger LSW-5(USB)

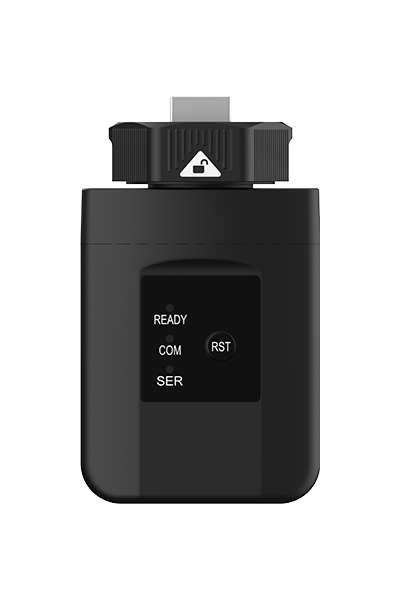

LSW-6
WiFi 6
SOLARMAN/DATA LOGGER/Stick Logger LSW-3(DB9)
LSW-3
2.4G WiFi
SOLARMAN data logger/smart dongle/solar pv data logger/solar monitoring/pv monitoring/Stick Logger LSG-3(DB9)
LSG-3
GPRS
SOLARMAN DATA LOGGER/Stick Logger LSE-3(Aviation head)
LSE-3
LAN
