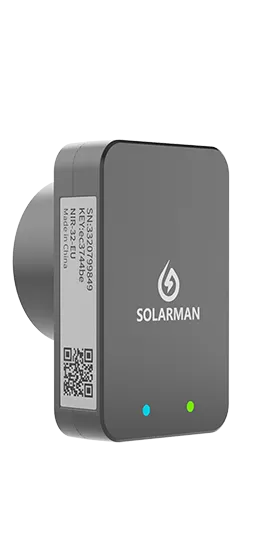

IR Meter Reader

Name: IR Meter Reader
Brand: IGEN Tech Co., Ltd.
Availability: InStock

The infrared meter reader mainly monitors the electricity meter system in a long-term and effective manner by collecting the working status and electricity consumption of the infrared electricity meter. It connects to a single infrared electricity meter via an "infrared interface", receives various consumption data from the meter, and transmits the data to local or remote software platforms through WiFi. The real-time status and historical data of the electricity meter can be presented in the form of charts, which are intuitive and easy to understand. This allows users to monitor the electricity meter system anytime and anywhere, greatly simplifying maintenance work.

IR Meter Reader Feature

Compact size, easy to install

Four-hole design to adapt to different electricity meter structures

Standard Bluetooth for fast network configuration with high success rate

Configurable LoRa technology for easy remote relay communication

Optional RS485 interface for local data reading

Seamless communication with various smart electricity meter models

Compliant with EN 18031 IoT network security standard

IR Meter Reader Parameters

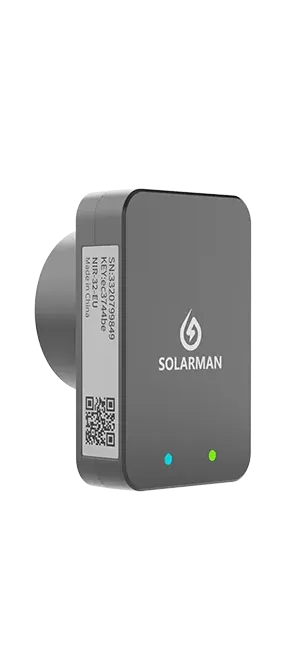

NIR-32-EU

Communication Parameter

Remote Communication	WiFi
WiFi Standard	802.11 b/g/n
WiFi Frequency Range	2.412GHz-2.484GHz
WiFi Transmission Power	802.11b: +20.5dBm (@1Mbps)
	802.11b: +20.5dBm (@11Mbps)
	802.11g: +20.0dBm (@6Mbps)
	802.11g: +18.0dBm (@54Mbps)
	802.11n: +19.0dBm (@HT20, MCS0)
	802.11n: +17.5dBm (@HT20, MCS7)
	802.11n: +18.5dBm (@HT40, MCS0)
	802.11n: +17.0dBm (@HT40, MCS7)
Bluetooth Standard	BLE 5.0
Bluetooth Operating Frequency	2.402GHz-2.480GHz
Bluetooth Transmission Power	Max 20dBm
LoRa Operating Frequency Band（Configurable）	864MHz~928MHz
LoRa Transmission Power（Configurable）	Max 22dBm
Antenna	Bluetooth/WiFi on-board antenna,
Antenna	LoRa on-board antenna（Configurable）

Hardware Parameter

Installation Method	Magnetic suction type: vertical installation, horizontal installation
Product Size	34mm50mm28.3mm (excluding power cable)
Power Interface	USB-C
Data Interface	Infrared transceiver @ wavelength 940nm
Communication Distance	≤10mm±1mm
Data Storage	8MB
Operating Voltage	DC 5.0V±5%
Operating Power	＜3W
Indicator Lights	One for electricity meter connection status - infrared green light One for server connection status - WiFi blue light
Button	One reset button
Operating Temperature	-20℃~+50℃
Operating Humidity	10%-70% relative humidity, no condensation
Storage Temperature	-25℃~+60℃
Storage Humidity	<40%

Software Parameter

Number of Connected Infrared Electricity Meters	1 unit
Data Collection Interval	SML protocol: 2s OBSI protocol: 30s~2min
User Configuration	Local configuration, remote configuration
Firmware Upgrade	Local upgrade, remote upgrade
Restart Mechanism	Software watchdog, hardware watchdog
Others	Real-time control, breakpoint resume
