Smart Plug
Smart Plug

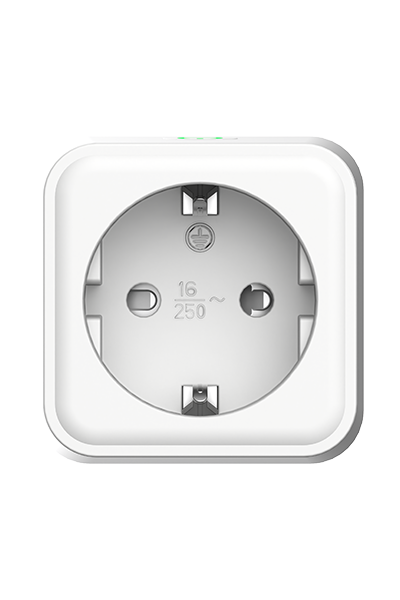

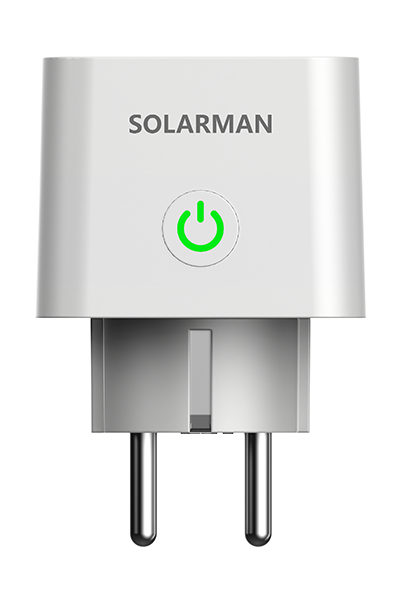

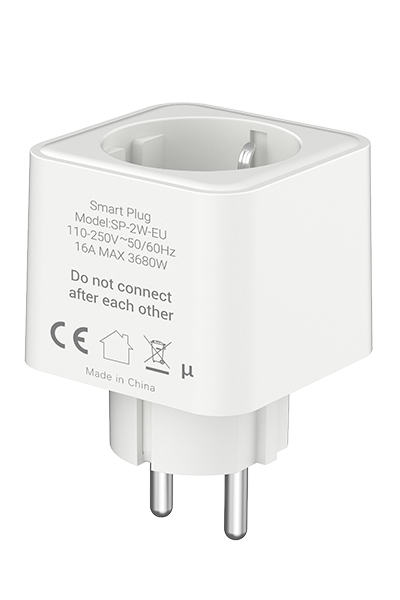

- SP-2W-EU is an advanced smart metering plug, specially designed for various household scenarios, which features in bidirectional measurement and remote control. It can send the real-time data to local or remote platform via WiFi. Users can remotely control the plug to switch connected appliances on or off and monitor the consumption data through the smartphone or computer. With the ability to adjust appliance settings as needed, SP-2W-EU enhances the convenience and efficiency of home energy management significantly.
Feature
- High accuracy metering chip, realizing bidirectional measurement
- 3680W load-bearing capacity, 16A safe load
- Support WiFi/Bluetooth communication, easy for data cloud integration
- Remote and local control, realizing intelligent management for household appliances
- Connect energy storage devices, easy for linkage control
- Wide voltage (AC 110-250V) design, compatible with different voltage environment
- Embedded multiple security protection mechanisms, no worry for electricity usage
- Compliant with ETSI EN 303 645 standard, ensuring user privacy
Communication Parameters
| Remote Communication | 2.4GHz WiFi |
| WiFi Standard | 802.11b/g/n |
| WiFi Frequency | 2.412GHz-2.472GHz (CH1~CH13) |
| WiFi Transmission Power | 802.11b:+17dBm±1.5dBm (@11Mbps) 802.11g:+15dBm±1.5dBm (@54Mbps) 802.11n:+14dBm±1.5dBm (@HT20, MCS7) |
| Bluetooth Standard | BLE 5.0 |
| Bluetooth Frequency | 2.402GHz-2.480GHz |
| Bluetooth Transmission Power | Max 15dBm |

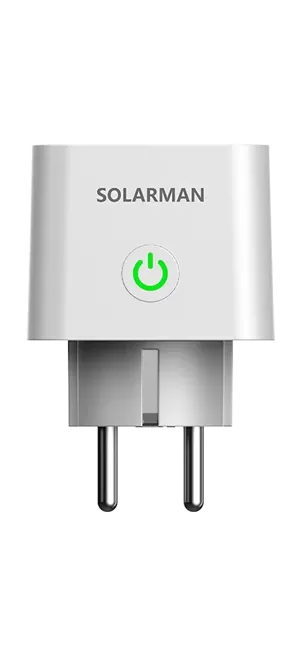

Hardware Parameters
| Standard | European standard |
| Dimension | 55.0mm*55.0mm*81.8mm |
| Working Voltage | AC 110-250V 50Hz/60Hz |
| Load Power | 16A Max. 3680W resistive load |
| Indicator Light | One ON/OFF indicator light |
| Measurement Parameter | Power (W)/Energy (kWh)/Voltage (V)/Current (A) |
| Metering Accuracy | 3% |
| Memory | 2MBYTE FLASH |
| Working Temperature | -20℃ ~+50℃ |
| Working Humidity | 10%-70% RH (No Condensation) |
| Storage Temperature | -45℃ ~+90℃ |
| Storage Humidity | <40% RH (No Condensation) |
| Case Material | UL94V0 |
| Anti Electric Shock | Anti Electric Shock Protection Door |
| Protection Mechanism | Load Protection |
Software Parameters
| Data Transmission Interval | Default: 5 mins (when data remain unchanged)/ Data will be uploaded immediately once it changed. |
| Firmware Upgrade | APP/Remote server |
| User Configuration | APP |
| Remote Control | √ |
