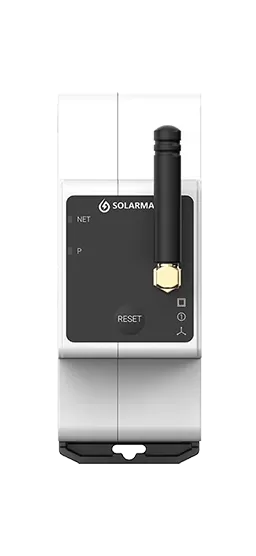

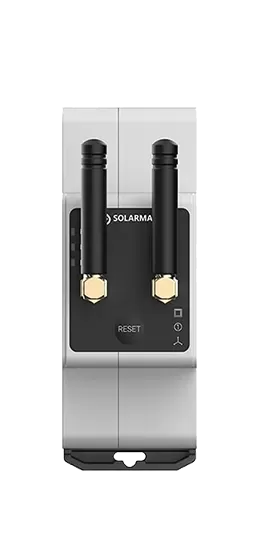

Three-phase Meter

Name: Three-phase Meter
Brand: IGEN Tech Co., Ltd.
Availability: InStock

SOLARMAN smart meter is applied for energy management purpose, and it works to measure and controlelectricity consumption of PV plant, power system, communication station, intelligent building and etc,. ltfeatures in high reliability, high accuracy, compact size and easy to install, etc.

Three-phase Meter Feature

Data Transmission

LoRa technology (configurable) realizes low power consumption and long-distance data uploading

Equipped with Bluetooth as standard, supporting local network distribution

Easy to use

Open-type CT, easy to install and maintain

Compact Size

with a form of 2P

Accurate Measurement

Bi-directional metering of electricity consumption or generation data

Excellent Performance

Provides local API interface to enable efficient integration with HEMS

Support real-time uploading of data and fault information in milliseconds

Compliant with EN18031

Comply with EN18031 IoT network security standard

Three-phase Meter Parameters

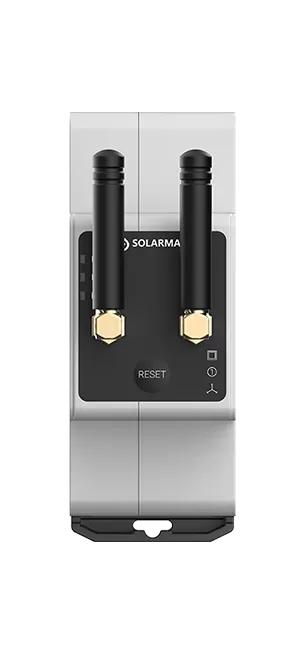

MR3-D4-WRE

MR3-D4-WE

Communication Parameters

Product Model	MR3-D4-WRE
Communication Method	WiFi 6, Ethernet, LoRa (Configurable)
WiFi Standard	IEEE 802.11 b/g/n/ax
WiFi Frequency Range	2.412 GHz-2.482 GHz (CH1~CH13)
WiFi Output Power	11ax mode HE40:16dBm; 11ax mode HE20:17dBm 11n mode HT40:17dBm; 11n mode HT20:17dBm 11g mode:18dBm 11b mode:18dBm
WiFi Receiving Sensitivity	11b,1 Mbps:98dBm; 11b,11 Mbps:90dBm 11g,6 Mbps:93dBm; 11g,54 Mbps:76dBm 11n,HT20 (MCS7):73dBm 11ax,HE20 (MCS9):70dBm; 11ax,HE40 (MCS9):67dBm
Ethernet	1 channel 10/100 Mbps Adaptive
LoRa Operating Frequency	863-870 MHz
LoRa Spreading Factor	–
BLE Wireless Standard	BLE 5.3
BLE Frequency Range	2400 ~ 2483.5MHz
BLE Transmit Power/Receiving Sensitivity	–
Antenna Type	LoRa external antenna (Configurable), WiFi external antenna

Electrical Characteristics

Product Model	MR3-D4-WRE
Wiring Method	Single-phase 2-wire, 3-phase 4-wire
CT	Default 100A3 Optional 400A3
Rated Voltage	230V/400V (±20%)
Imput Current	10 (100)A
Rated Frequency	50Hz/60Hz
Operating Power	4W
Measurement Accuracy	Active power level 1, reactive power level 2
Electrical Parameter Refresh Rate	–

Hardware Parameters

Product Model	MR3-D4-WRE
Communications Interface	RS485*1 (ModbusRTU2400bps~115200bps)
Mounting	DIN Rail 35mm
Operating Temperature	-20℃ ～ +50℃
Operating Humidity	10~70% RH, no condensation
Altitude	Below 2000 meters
Storage Temperature	-20℃ ～ 60℃
Storage Humidity	≤40% RH, no condensation
IP Grade	IP20
Flame Retardant Rating	UL 94 V0
Certifications	CE, REACH, RoHS

Software Parameters

Product Model	MR3-D4-WRE
Ethernet Access	≤5 units
Number of Connected LoRa Sub-devices (optional)	Default setting 1 unit (1~10 units optional)
Data Upload Frequency	Default 5 minutes
User Configuration	Local/Remote configuration
Firmware Upgrade	Remote upgrade

Communication Parameters

Product Model	MR3-D4-WR
Communication Method	WiFi 6, Ethernet, LoRa (Configurable)
WiFi Standard	IEEE 802.11 b/g/n/ax
WiFi Frequency Range	2.412 GHz-2.482 GHz (CH1~CH13)
WiFi Output Power	11ax mode HE40:16dBm; 11ax mode HE20:17dBm 11n mode HT40:17dBm; 11n mode HT20:17dBm 11g mode:18dBm 11b mode:18dBm
WiFi Receiving Sensitivity	11b,1 Mbps:98dBm; 11b,11 Mbps:90dBm 11g,6 Mbps:93dBm; 11g,54 Mbps:76dBm 11n,HT20 (MCS7):73dBm 11ax,HE20 (MCS9):70dBm; 11ax,HE40 (MCS9):67dBm
Ethernet	1 channel 10/100 Mbps Adaptive
LoRa Operating Frequency	863-870 MHz
LoRa Spreading Factor	–
BLE Wireless Standard	BLE 5.3
BLE Frequency Range	2400 ~ 2483.5MHz
BLE Transmit Power/Receiving Sensitivity	–
Antenna Type	LoRa external antenna (Configurable), WiFi external antenna

Electrical Characteristics

Product Model	MR3-D4-WR
Communication Method	WiFi 6, Ethernet, LoRa (Configurable)
WiFi Standard	IEEE 802.11 b/g/n/ax
WiFi Frequency Range	2.412 GHz-2.482 GHz (CH1~CH13)
WiFi Output Power	11ax mode HE40:16dBm; 11ax mode HE20:17dBm 11n mode HT40:17dBm; 11n mode HT20:17dBm 11g mode:18dBm 11b mode:18dBm
WiFi Receiving Sensitivity	11b,1 Mbps:98dBm; 11b,11 Mbps:90dBm 11g,6 Mbps:93dBm; 11g,54 Mbps:76dBm 11n,HT20 (MCS7):73dBm 11ax,HE20 (MCS9):70dBm; 11ax,HE40 (MCS9):67dBm
Ethernet	1 channel 10/100 Mbps Adaptive
LoRa Operating Frequency	863-870 MHz
LoRa Spreading Factor	–
BLE Wireless Standard	BLE 5.3
BLE Frequency Range	2400 ~ 2483.5MHz
BLE Transmit Power/Receiving Sensitivity	–
Antenna Type	LoRa external antenna (Configurable), WiFi external antenna

Hardware Parameters

Product Model	MR3-D4-WR
Communications Interface	RS485*1 (ModbusRTU2400bps~115200bps)
Mounting	DIN Rail 35mm
Operating Temperature	-20℃ ～ +50℃
Operating Humidity	10~70% RH, no condensation
Altitude	Below 2000 meters
Storage Temperature	-20℃ ～ 60℃
Storage Humidity	≤40% RH, no condensation
IP Grade	IP20
Flame Retardant Rating	UL 94 V0
Certifications	CE, REACH, RoHS

Software Parameters

Product Model	MR3-D4-WR
Ethernet Access	≤5 units
Number of Connected LoRa Sub-devices (optional)	Default setting 1 unit (1~10 units optional)
Data Upload Frequency	Default 5 minutes
User Configuration	Local/Remote configuration
Firmware Upgrade	Remote upgrade

MR3-D4-WRE

MR3-D4-WE
