The P1 Meter Reader is an essential tool for accurate monitoring of solar power systems. Whether you're a homeowner or a professional installer, understanding how to properly use this device is critical for optimizing energy management. This guide walks you through the key steps for installation, operation, and troubleshooting of the P1 Meter Reader.
Installing the P1 Meter Reader is straightforward and does not require complex technical expertise. Follow these steps for a smooth setup:
Mount the Meter: Place the P1 Meter Reader in a dry, stable location near the energy meter or inverter.
Connect the Cables: Attach the data cables from the P1 Meter Reader to the inverter or energy meter, ensuring the connections are secure.
Power Up: Once connected, power on the device and check for an indicator light showing successful initialization.
Software Setup: Download the accompanying app or software to link the P1 Meter Reader with your smartphone or computer for real-time monitoring.
The P1 Meter Reader provides precise data regarding energy consumption, production, and system performance. Once installed, you can monitor the following:
Energy Output: View how much energy is being generated by the solar system.
Energy Consumption: Track how much energy is being used by the household or facility.
System Health: Keep an eye on the status of your system, including any anomalies or performance issues.

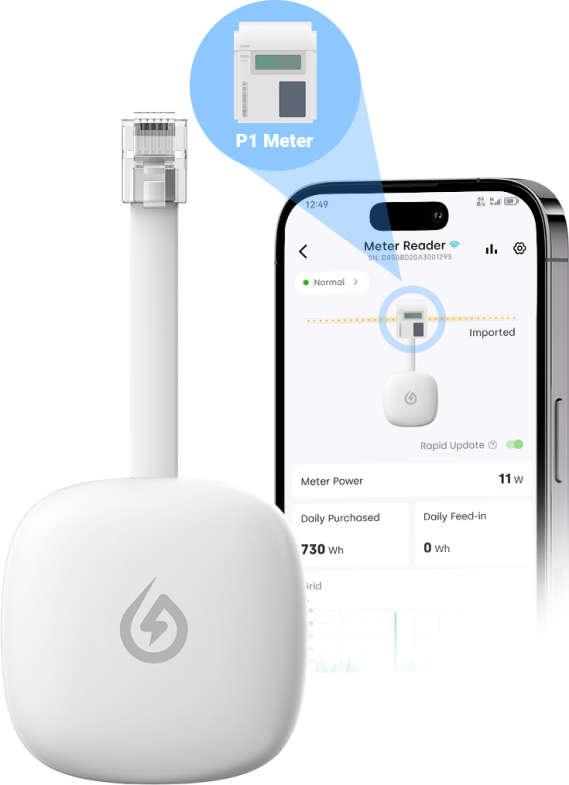

The data is displayed clearly on your connected device (smartphone, tablet, or PC), and updates in real time, allowing you to react quickly to any fluctuations.
Interpreting the data collected by the P1 Reader is key to optimizing energy usage and ensuring system efficiency. Here’s a basic guide to understanding the metrics:
| Metric | Description | Ideal Range |
| Solar Energy Produced | Amount of energy produced by your solar system. | Higher is better |
| Energy Consumed | Energy used by the household or building. | Minimize |
| System Efficiency | The overall efficiency of the system. | >95% |
| Power Loss | Energy lost due to system inefficiencies. | Low is better |
By regularly monitoring these metrics, users can adjust energy usage habits, perform necessary maintenance, or make system upgrades when necessary to improve efficiency.
While the P1 Meter Reader is a robust and reliable device, there may be times when you need to troubleshoot or perform routine maintenance. Here are a few tips:
No Data Displayed: Ensure all cables are securely connected. If the device is powered, check for any error codes on the app or screen.
Inaccurate Readings: If readings seem off, verify that the P1 Meter Reader is correctly configured and that no external factors (such as shading) are affecting your solar panels.
System Downtime: Check the device's firmware for any updates. Outdated software can sometimes cause performance issues.
If problems persist, consult the product manual or contact the customer support team for more detailed assistance.
The P1 Meter Reader is an invaluable tool for optimizing and managing your solar energy system. With straightforward installation, clear data monitoring, and easy troubleshooting, it empowers users to get the most out of their solar investment. By following this user guide, you can ensure that your P1 Meter Reader operates efficiently, providing accurate and real-time insights into your energy production and consumption.
