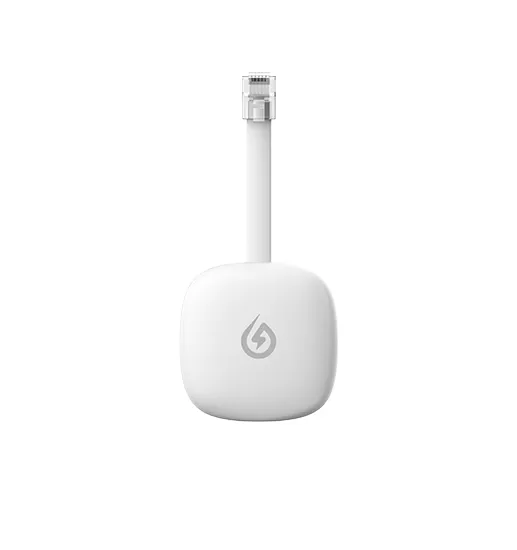

Universal COM protocol for broad compatibility
Type-C interface addresses the power supply issue for P1 Meter Reader below DSMR 5.0
Standard bluetooth network configuration
Compact-size design, no extra space required
Direct power from the P1 Meter Reader with plug-and-play functionality
Remote management software for visual data handling
Data encryption ensures secure and reliable remote transmission
Accurate measurement of electrical energy data
Supports local API interface for efficient access to home energy management systems (HEMS)
Support local linkage with micro storage device
Compliant with ETSI EN 303 645 standard

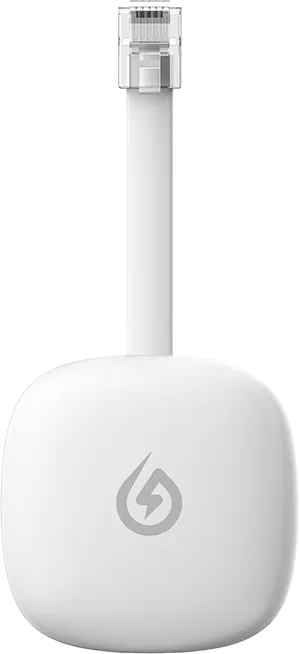

| Remote Communication | 2.4GHz WiFi |
| WiFi Standard | 802.11b/g/n |
| WiFi Frequency | 2.412GHz-2.472GHz (CH1~CH13） |
| WiFi Transmission Power | 802.11b:+17dBm±1.5dBm (@11Mbps) 802.11g:+15dBm±1.5dBm (@54Mbps) 802.11n:+14dBm±1.5dBm (@HT20,MCS7) |
| Bluetooth Standard | BLE5.0 |
| Bluetooth Frequency | 2.402GHz-2.480GHz |
| Bluetooth Transmission Power | Max 15dBm |
| Data Interface | P1-RJ12 |
| External Interface | USB Type-C & RJ12 |
| Working Voltage | DC 5.0V±5% |
| Working Power | <1W |
| Indicator Light | P1 green light shows connection status with meter WiFi blue light shows connection status with server |
| Memory | 8MB FLASH |
| Working Temperature | -20℃~+50℃ |
| Working Humidity | 10%-90% RH no condensation |
| Storage Temperature | -30℃~+60℃ |
| Storage Humidity | ≤40%RH (No Condensation) |
| No. of Connections | One P1 meter |
| Serial Communication Rate | Default: 115200bps (Configurable) |
| Data Transmission Interval | Default: 5 mins (60-600s Configurable) |
| Firmware Upgrade | Remote upgrade/Local upgrade |
| User Configuration | APP/Web page |
| Software Watchdog | √ |
| Others | Real-time Control |

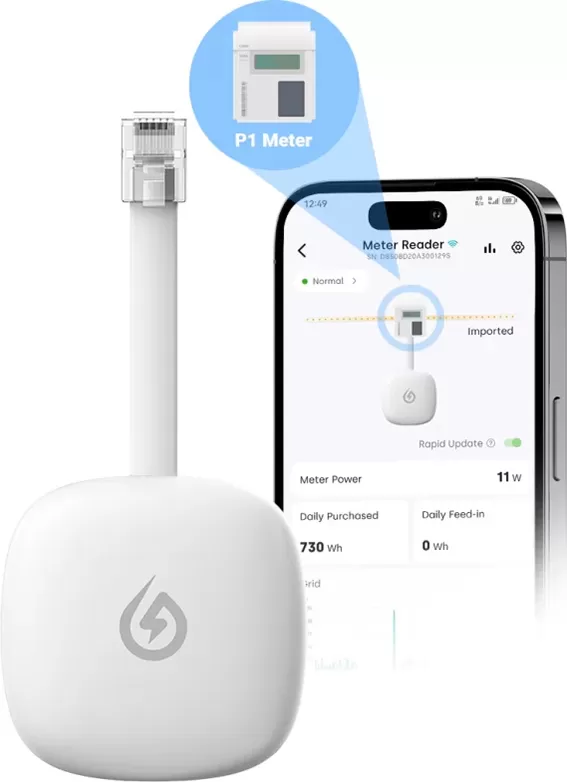

With the app, you can see real-time events or revisit past data at any time.

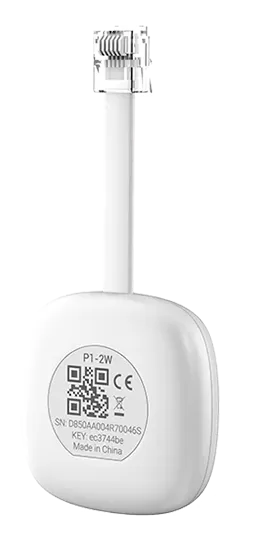

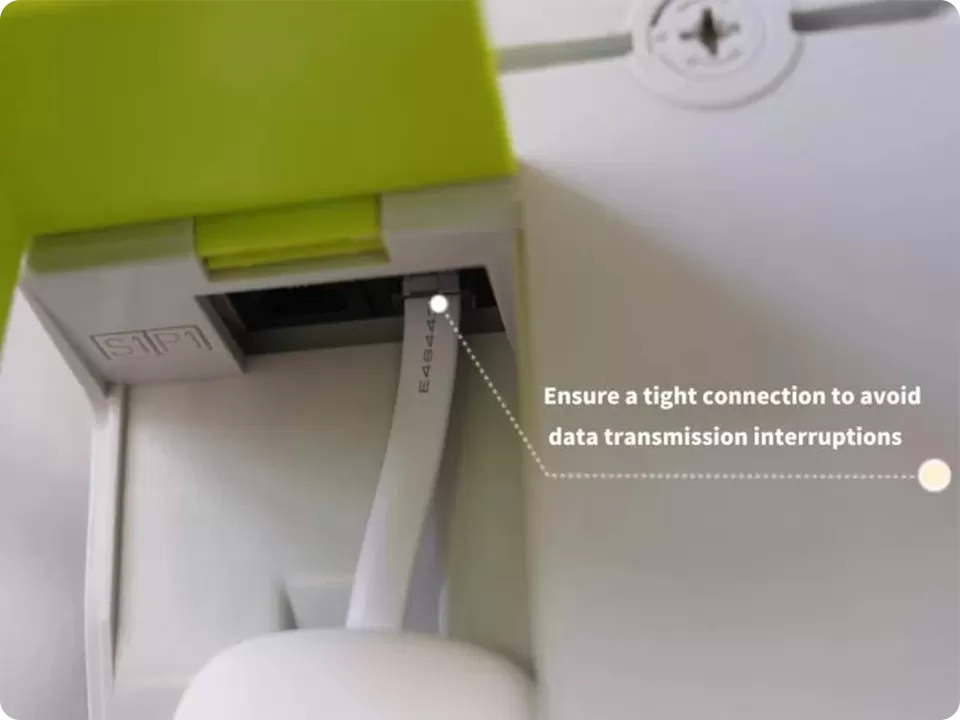

The P1 Meter Reader plugs into the P1 port of your smart meter and displays the electricity and gas consumption of your home. The P1 Meter Reader is compatible with most modern meters in Europe, and for modern smart meters, you don't even need a power adapter! Just plug it in, connect to Wi-Fi, and you’re ready to go.
The P1 Meter Reader can upload the collected meter data to a local or remote software platform with WiFi connection. The specific data read is the data collected by the meter, which generally includes electricity measurement, voltage, current, and power.
The P1 Meter reader supports remote updates and configurations, allowing users to remotely update the firmware of the P1 meter reader to fix known issues, enhance functionality, or adapt to new meter types.
If you need more FAQs, please feel free to contact us.
