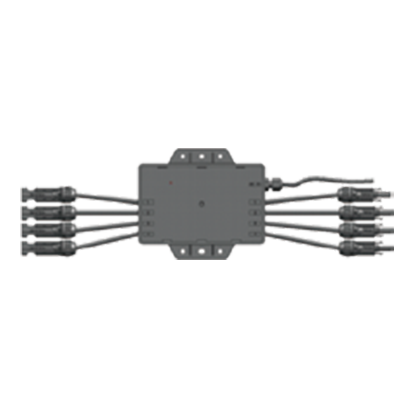

Module PV Rapid Shutdown Controller

Module PV Rapid Shutdown Controller

  • SOLARMAN module PV rapid shutdown controller(MPSC) can control turn-on and turn-off of module PV rapid shutdown via DC PLC. It meets the standard of NEC 2020 690.12.


PLC communication, additional wiring is not required;
High reliability, strong disturbance-resistant;
NEC 2020 690.12 certified;
Meet SunSpec standard (Optional);
Easy installation;
Product ModelMPSC
Communication TypePLC
Working Temperature-40 ~ +65 ℃
IP GradeIP65
No. of Connections1~4 Strings
ConnectorMC4/MC4 (Configurable)
AC Power Supply100~240 V,50/60 Hz
EMCFCC part 15 class, IEC 61000-6-2, IEC 62000-6-3
Safety StandardIEC62109-1(class2 safety) UL1741
Safety ShutdownVde-AR-E-2100-712: 2013-05, NEC 2017 690.12

Data Sheet
