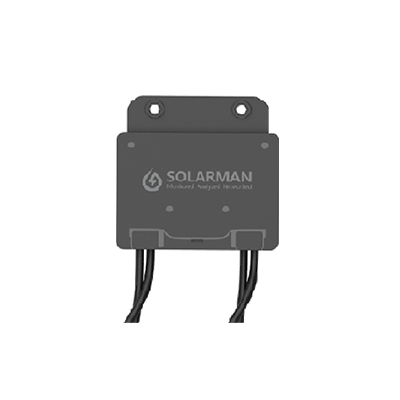

Module PV Rapid Shutdown

Module PV Rapid Shutdown

  • SOLARMAN module PV rapid shutdown(MPS) can provide module-level shutdown solution when a fire occurs, which enables that any two nodes voltage of PV array shall not exceed 80V. It ensures the safety of firefighters and O&M personnel.


NEC 2020 690.12 certified;
Meet SunSpec standard;
Easy installation;
25-year design life, compatible with PV module.
Product ModelMPS 600MPS 1200
No. of Connections1pc2pcs
Operating Voltage Range7 ~ 60 V
Max. Input Current15 A | Scalable
Max. System Voltage1500 V
Weight480 g800G
CableArea 4.0 mm² Input 70cm Output 100 cm
ConnectorMC4/MC4 (Configurable)
Working Temperature-40 ~ +65 ℃
IP GradeIP65
Designed Life25 years

Data Sheet

SOLARMAN Module-PV-Rapid-Shutdown
